Código del producto:
P-2150		Precio:
1244,00€ +IVA 		1.- Pida presupuesto para este producto

P-2150

imagen

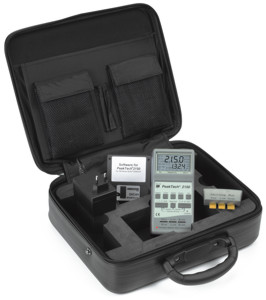

Medidor LCR (inductancia, capacidad y resistencia). De 100Hz a 100KHz.

This high accuracy LCR meter can perform the inductor, capacitor and resistor measurement up to 100 kHz within 0,2 % basic accuracy. It is the most advanced handheld AC/DC impedance measurement instrument to date. This Tester can help engineers and students to understand the characteristic of electronics components. It is also of great assistance to those people who want to do the quality control of the electronic components.

The instrument is auto or manual ranging. Test frequencies of 100/120 Hz/1/10/100 kHz may be selected on all applicable ranges. The test voltages of 50/0,25 or 1 Vrms (DCR only) may also be selected on all applicable ranges. The dual display (60 x 33 mm) feature permits simultaneous measurements.

Components can be measured in the series or parallel mode as desired; the more standard method is automatically selected first but can be overridden.


 DC Resistance measurement

 Rechargeable batteries, AC

 RS-232 C Interface (IrDA)

 For PC with Infrared Port

 Safety: IEC-1010-1; CAT III

 Accessories: Software, 2 x 1,2 V Ni-Mh rechargeable batteries, Manual, 6 V AC/DC Adaptor, shorting bar and carrying case

 Optional Accessories: TK: 4-p. Testclips, SM-TK: SMD-Testprobe, KK: 4-p. Kelvin Clips, ISWA: Infrared Software Adaptor


Measuring functions
Z... absolute value of impedancet
L... Inductance
C... Capacitance
DCR... Direct current resistance
ESR... equivalent series resitance
D... Dissipaton factor
Q... Quality factor
θ... Phase angle
Z,L,C and ESR... Accuracy (Ae)
Test-frequency
DCR 120 Hz
20 MΩ - 10 MΩ: 2% ±1*
10 MΩ - 1 MΩ: 1% ± 1
1 MΩ - 100 kΩ: 0,5% ± 1
100 kΩ - 10 Ω: 0,2% ±1
10 Ω - 1 Ω: 0,5% ± 1
1 Ω - 0,1 Ω: 1% ± 1
DCR 10 kHz
20 MΩ - 10 MΩ: 5% ± 1*
10 MΩ - 1 MΩ: 2% ± 1
DCR 100 kHz
20 MΩ - 10 MΩ: NA
10 MΩ - 1 MΩ: 5% ±1*
1 MΩ - 100 kΩ: 2% ±1
100 kΩ - 10 Ω: 0,4% ± 1
10 Ω - 1 Ω: 2% ± 1
1 Ω - 0,1Ω: 5 % ± 1*
* Remark: Ae is not specified in the test, level is set to 50 mV
ISI, L, C and ESR accuracy applies when Dx (measured D-value) < 0,1
Comibinations
Serial Mode: Z-θ, Cs-D, Cs-Q, Cs-ESR, Ls-D, Ls-Q, Ls-ESR
Parallel Mode: Cp-D, Cp-Q, Lp-D, Lp-Q
Ranging
auto or manuell
Relative
Relative mode
Calibration
Open/Short calibration
RS-232 C interface
IrDa (Infrared)
Transmission signal
Tx and Rx
Flow control
X ON/X OFF
Output impedance
100 Ω ± 5 %
Display range
Z: 0,001Ω...9999 MΩ
L: 0,001μH...9999 H
C: 0,001pF...9999F
DCR: 0,001Ω...9999MΩ
ESR: 0,001 Ω ... 9999 Ω
D: 0,001 ... 9999
Q: 0,001 ... 9999
θ: -180° ... +180°
Measuring speed
slow: 2,5 x per Sec.; fast: 4,5 x per Sec.
Operating voltage
110/220 V, 50/60 Hz over AC-Adaptor
Dimensions (WxHxD)
86 x 174 x 48 mm
Weight
470 g
