Código del producto:
P-1860
Precio:
369,90€ +IVA
1.- Pida presupuesto para este producto

P-1860

imagen

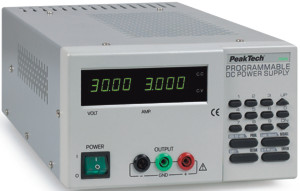

Fuente de alimentación con RS-232 C y GPIB, ajustable de 0 a 30V, 0 a 3A DC y salida fija de 5V y 2A DC.


This unit is a high quality microcontrolled based DC power supply with a total capability of 90 W. By using a digital operation control and an analogue output control, the unit combines the advantages of ease and accuracy of digital systems, with the clean supply and quiet operation of analogue systems. In addition this DC power supply is provided with USB and RS-485 interfaces for remote programming and control.


4 digit LED for volt and ampere

With galvanic steel case

Excellent line and load regulation

9 user programmable preset output memories

Instant retrieval of preset output

Clean output with low ripple and noise

10 steps user program, voltage/current values

Safety: IEC-1010-1

Accessories: USB-cable, Software for Windows 98/ME/2000/XP and manual


output voltage
0 - 30 V DC
output current
0 - 3 A DC
display
4 digit LED displays
residual ripple
3 mV rms
line regulation
0,02 % + 3 mV (voltage); 2 mV (current)
load regulation
0,02 % + 5 mV (voltage and current)
protection devices
Current Limiting and OVP (Output Overvoltage Protection)
interfaces
USB 1.0 or RS-485 (up to 31 power supplies)
operation voltage
200 ~ 240 V AC; 50/60 Hz
dimension (WxHxD)
205 x 115 x 275 mm
weight
5 kg
