ALBEDO Instruments.Productos.Fuentes de alimentación.P-1890

Código del producto:
P-1890

Precio:
421,00€ +IVA

1.- Pida presupuesto para este producto

P-1890

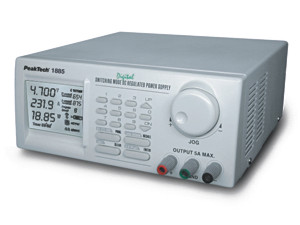

	Fuente de alimentación conmutada programable con RS-232 C y RS-485, ajustable de 1 a 20V, 0 a 10A DC.

This series of user friendly programmable power supplies are ideal for repetive procedure in testing, production, or R&D environment. The units controlled by MCU (micro-controller unit) coupled to regulated Switching Mode Power Supply. Nine user presets of output voltage and current are available for instant recall. A sequence of up to 10 programmed output of voltages, currents and time intervals can be set and activated via the unit�s keypad or PC interface. PC Interface RS-232 and RS-485 are built in with the unit so that data of all outputs can be collected and stored in the PC. With RS-485, one PC can remote control up to 32 units of power supplies.

The LCD module displays : set values of voltage and current, actual output values of voltage and current and power, status of output on/off mode, of keypad lock/unlock mode, of CC/CV mode.

4 digit Multi-function LCD display (48 x 66 mm) with Back Light , � 1,5 % + 2 dgt. Accuracy

CC and CV display with auto-cross over

Short circuit-, overload- and over temperature protection

Supplied with software (Window TM) for remote presets, timed sequence and data logging

Safety: IEC-1010-1

Accessories: Software for Window TM, RS-232 C Interface Cable and Manual

Output Voltage	1 ... 20 V DC
Output Current	0 ... 10 A DC
Ripple	25 mV
Load Regulation	0,5 % + 200 mV
Line Regulation	50 mV
Cooling System	Thermostatic control fan
Protection Devices	Over Temperatur, OVP
Operating Voltage	90...265 V AC; 50/60 Hz
Dimension (WxHxD)	193 x 98 x 215 mm
Weight	3 kg
